Han Jiang HJ-DAFM-2008-II

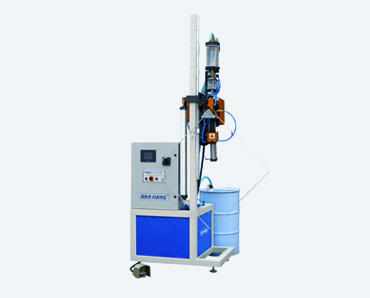

The HJ-DAFM-2008-II is an automatic machine for the desiccant filling of both bent aluminium frames and corner-connected frames, via drilled holes. The filling height is adjustable according to the frame size and the machine stops once the frame is full, automatically filling the holes with butyl.
The HJ-DAFM-2008-II accepts a bag of desiccant such as our Sivlite™. The machine can be incorporated into an insulated glass production line for the manufacture of units with rigid spacer frames.
Please do not hesitate to contact us for further information, pricing or to discuss your machinery requirements.
| Dimensions (l x w x h) | 1680mm x 1080mm x 3050mm |
| Workable spacer width | 5.5-20mm |
| Minimum size | 300mm x 300mm |
| Maximum size | 2000mm x 2000mm |
| Filling speed | 3 seconds (1000mm x 1000mm x 9mm) |
| Air pressure | 0.6MPa |
| Power | 1P+N 220V, 50Hz, 1kW |
