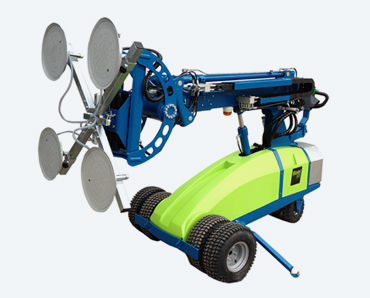

Winlet 575 Glass Lifting Manipulator
The Winlet 575 is a glass lifting manipulator for handling sheet glass, windows and other non-porous materials such as granite, concrete, plasterboard, tiles, etc. The manipulator head is equipped with four vacuum suction cups as standard with a lifting capacity of 575kg. The Winlet 575 is compact, battery-powered and equipped with six hydraulic movements and unique 'gyro' function ideal for installing glass in pre-fabricated frames.
- Battery-powered for quiet, emission-free operation indoors or outdoors
- Steering arm with speed control for enhanced reach and manoeuvrability
- Vacuum suction lifter for glass, windows and other materials up to 575kg
- Six hydraulic movements for accurate manipulation/installation of materials
- Unique 'gyro' function adjusts load to maintain 90° angle while lifting
- Wired remote for easy control of vacuum, manipulator head and boom
- Emergency stop and 'emergency reverse' buttons for safe operation
- Optional twin front tyres and support wheels for stability on rough terrain
- Optional 'Spy Glass Kit' indictaes hours of operation, battery life and errors
Please see data sheet for more information. Please do not hesitate to contact us for further information, pricing or to discuss your glass handling requirements.
| External length | 1880mm |
| External width | 890mm |
| Maximum load | 575kg |
| Max. load at maximum extension | 275kg |
| Maximum side mounted load | 275kg |
| Total weight excluding counterweights | 1025kg |
| Total weight including counterweights | 1300kg |
| Extension min/max – Front bumper to suction cup | 700mm / 1800mm |
| Maximum lifting height – To centre of lifting yoke | 3600mm |
| Hydraulic side shift | 100mm |
| Hydraulic fine lift on arm | 200mm |
| Hydraulic rotation | 360° |
| Tilt function of the front – Horizontal arm | Back: 60° Forth: 86° |
| Suction cups | 4 X ø 350mm |
| Batteries | 2 x 150 AH |
| Maximum speed | 5kph |
