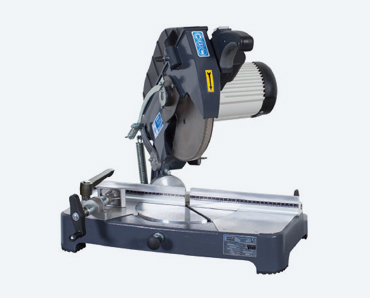

Portable Aluminium & UPVC Mitre Saw
The Portable Mitre Saw is designed for manual straight and angled cutting of aluminium, UPVC or wooden profiles. It accommodates a 300mm ø saw blade and is capable of cutting at any angle between −45° and +45°. The machine is compact, lightweight and operates with single-phase power, making it useful for window and door fabrication or general-purpose cutting on site.
Machinable substrates: Aluminium, UPVC and wood
- Manual rotation of cutting head from −45° and +45°
- Automatic locking positions at 0°, 15°, 22.5°, 30°, 45°
- Double spring system and blade cover for safety
- Profile measurement stop included as standard
- Robust manual horizontal clamping system
- Operation on table top or support stand
- Saw blade supplied separately
- Single-phase power
Please see data sheet for more information. Please do not hesitate to contact us for further information, pricing or to discuss your machinery requirements.
| Power supply | 230V / 6A / 50-60Hz |
| Motor power | 0.75kW / 1HP |
| Motor speed | 3000 r.p.m. |
| Saw blade specification | ø 300mm*30-32mm |
| Saw blade speed | 3000 r.p.m. |
| 45° max. profile width / height | 75mm / 62mm |
| 90° max. profile width / height | 120mm / 62mm |
| Dimensions (l x w x h) | 550mm x 490mm x 535mm |
| Weight | 26kg |
