Aluminium Composite Panels

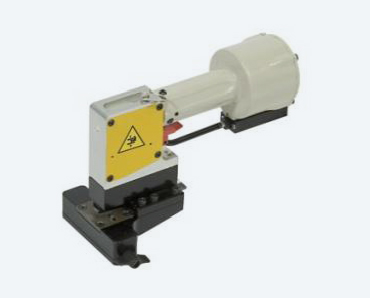

Oemme Curving Tool
A portable punching tool for the execution of round ended cuts for shaping aluminium composite panels without cracking the panel. The tool has adjustable cutting depth and can be used to process panels of up to 6mm in thickness. The tool is light, easy to handle and the distance between cuts is adjustable according to the curving angle of the panel.
| Dimensions (h x w x d) | 210mm x 290mm x 150mm |
| Weight | 4kg |
| Working thickness | 4mm - 6mm |
| Working thread | 1300kg |
| Working pressure | min. 6 - max. 7 bar |
| Air consumption | 0.4l/cycle |
