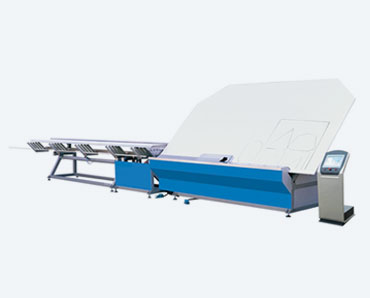

Han Jiang Spacer Bar Bending Machine
IG Machinery & Equipment

Han Jiang HJ-ASBM-2008-I

HJ-ASBM-2008-I is an automatic aluminium spacer bending machine which cuts the spacer frame after bending, automatically avoiding all of the connectors between spacers. The machine is controlled via a PLC control system with a touch-screen interface allowing for easy parameter setting and shape selection.

The automatic spacer bending machine can be incorporated into an insulated glass production line for the manufacture of units with rigid spacer frames. The machine has four profile magazines for four different specifications of spacers.

Please do not hesitate to contact us for further information, pricing or to discuss your machinery requirements.

Dimensions (l x w x h) 10 000mm x 2200mm x 2600mm
Workable spacer width 5.5-20mm
Minimum size 250mm x 250mm
Maximum size 2000mm x 2000mm
Spacer frame error ±0.3mm/m
Angle error ±0.3°
Feeding speed 0-90m/min.
Air pressure 0.6MPa
Power 3P 380V/1P+N 220V, 50Hz, 4kW
